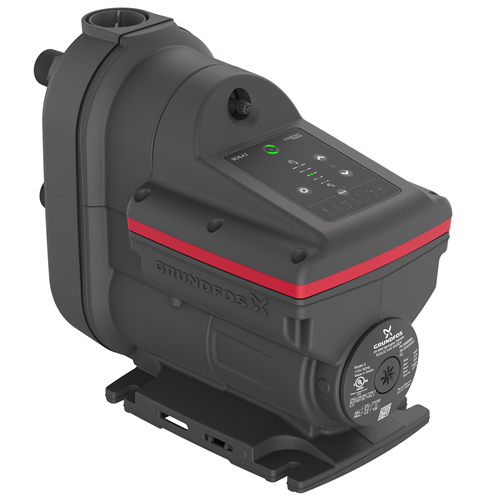

grundfos 93013252 scala2 3-45 z.ond.dr.bev z.vewin
Art nr.
430120
grundfos 93013252 scala2 3-45 z.ond.dr.bev z.vewin
Art nr.
430120
grundfos 93013252 scala2 3-45 z.ond.dr.bev z.vewin
Bij dit artikel worden er 1 stuks grundfos 93225678 onderdrukbeveiliging tbv Scala 2 (430122) toegevoegd
Log in
om uw prijzen, voorraad en levertijden te bekijken. Geen klant?
Klik hier om klant te worden
Specificaties
| Artikelnummer | 430120 |
| GTIN | 5715122954975 |
| Productgroep | Drukverhoging/-verlaging |
| Productklasse | Drukverhogingsunit |
| Fabrikant | Grundfos Nederland BV |
| Merk | Grundfos |
| Type | SCALA2, standaard |
| Serie | SCALA2 1-pomps, toerengeregeld |
| Geschikt voor tapwater | Ja |
| Geschikt voor hemelwater | Ja |
| Geschikt voor beregening/bevloeiing | Ja |
| Materiaal pomphuis | Kunststof vezelversterkt |
| Kwaliteitsklasse pomphuis | Overig |
| Materiaal waaier / pompwiel | Polypropyleen (PP) |
| Kwaliteitsklasse materiaal waaier | Overig |
| Materiaal appendages | Kunststof vezelversterkt |
| Materiaal reservoir | Overig |
| Kwaliteitsklasse reservoir | Overig |
| Aantal pompen | 1.0 |
| Volumestroom (BEP) | 3.0 m³/h |
| Druk bij volumestroom (BEP) | 264.71 kPa |
| Max. debiet | 4.6 m³/h |
| Max. opvoerhoogte | 45.0 m |
| Max. werkdruk | 10.0 bar |
| Elektrische aansluiting | Aansluitsnoer met stekker |
| Kabellengte | 2.0 m |
| Nom. spanning (Minimaal) | 200.0 V |
| Nom. spanning (Maximaal) | 240.0 V |
| Aantal fasen | 1.0 |
| Frequentie | 50/60 Hz |
| Nom. stroom | 2.8 A |
| Opgenomen motorvermogen (P1) | 0.55 kW |
| Afgegeven motorvermogen (P2) | 0.45 kW |
| Isolatieklasse volgens IEC | F |
| Toerental | 4890.0 1/min |
| Toerenregeling motor | Ingebouwd |
| Type toerenregeling | Traploos |
| Communicatie | Geen |
| Bluetooth-netwerk standaard | Nee |
| Radiostandaard WLAN 802.11 | Nee |
| 5G-netwerk standaard | Nee |
| Interface signaal 0-10 V / 2-10 V | Nee |
| Interface signaal 0-20 mA / 4-20 mA | Nee |
| Interface signaal PT100 / PT1000 / PTC | Nee |
| Interface pulsbreedtemodulatie (PWM) | Nee |
| Interface pulsteller | Nee |
| Potentiaalvrij schakelcontact | Nee |
| Met communicatie-interface RS-485 | Nee |
| Met communicatie-interface RS-232 | Nee |
| Ondersteunt protocol voor EtherNet/IP | Ja |
| Ondersteunt protocol voor KNX | Nee |
| Ondersteunt protocol voor PROFIBUS | Ja |
| Ondersteunt protocol voor PROFINET IO | Nee |
| Ondersteunt protocol voor CAN / CANOpen | Nee |
| Ondersteunt protocol voor Modbus TCP | Ja |
| Ondersteunt protocol voor Modbus RTU | Nee |
| Ondersteunt protocol voor BACnet MS / TP | Nee |
| Ondersteunt protocol voor BACnet IP | Nee |
| Ondersteunt protocol voor LON / LONWorks | Nee |
| Ondersteunt protocol voor LIN Bus | Nee |
| Mediumtemperatuur (continu) (Maximaal) | 45.0 °C |
| Omgevingstemperatuur (Maximaal) | 55.0 °C |
| Aansluiting inlaatzijde | Buitendraad conisch BSPT-R (ISO 7-1 / EN 10226-1) |
| Nom. diameter aansluiting inlaatzijde | 1 inch (25) |
| Aansluitstandaard inlaatzijde | ISO 7-1 / EN 10226-1 |
| Aansluiting perszijde | Buitendraad conisch BSPT-R (ISO 7-1 / EN 10226-1) |
| Nom. diameter aansluiting perszijde | 1 inch (25) |
| Aansluitstandaard perszijde | ISO 7-1 / EN 10226-1 |
| Zuigende installatie | Ja |
| Met omloopleiding | Nee |
| Beschermingsgraad pomp (IP) | IPX4 |
| Beschermingsgraad kast (IP) | Overig |
| Lengte | 403.0 mm |
| Breedte | 193.0 mm |
| Hoogte | 302.0 mm |
